This pneumatic crane (rated Safe Working Load SWL 0.2t) is specially engineered for special working conditions including ship decks, offshore platforms, and explosion-proof chemical workshops. It is mainly used for lifting, transfer and precise positioning of small equipment, tools and materials, with smooth lifting/lowering and 360° full-circle slewing. It perfectly adapts to light-load lifting demands in narrow spaces, serving as core light lifting equipment for maritime and explosion-proof scenarios.
Features
1. Explosion-proof Safety for Harsh Conditions
Powered solely by compressed air, it generates no electric spark during operation, fundamentally eliminating electrical safety hazards. It operates stably in harsh environments including flammable and explosive atmospheres, high-humidity salt spray, and dusty conditions, fully complying with maritime and chemical explosion-proof specifications.
2. Flexible Structure with Strong Adaptability

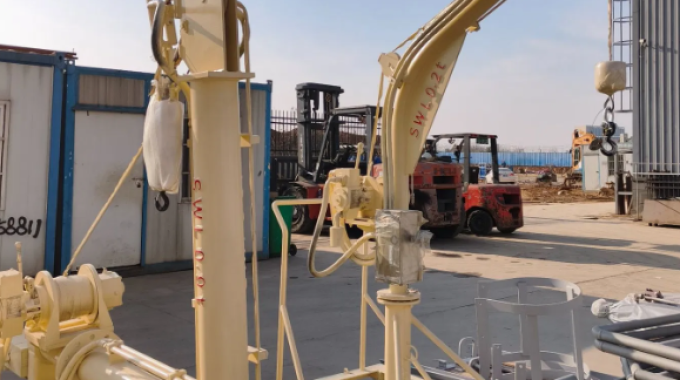

It adopts a lightweight cantilever design, with optional mobile wheeled base (as shown) or fixed installation. With a small footprint, it works flexibly in confined spaces like cabins and platform corners. Boom parameters and installation forms can be customized as required.
3. Precise Control & Stable Shock-free Operation
The pneumatic system realizes stepless speed regulation of lifting and lowering, with excellent start/stop cushioning and no rigid impact. Equipped with a manual slewing mechanism, it enables easy and precise alignment of lifted loads, effectively avoiding bump damage.
4. Corrosion Resistance & Easy Maintenance
The whole machine is treated with marine-grade anti-corrosion coating, and core pneumatic components have a high protection level, with outstanding salt spray, humidity and aging resistance for a long service life. Without complex electrical structure, it has highly universal parts, convenient daily maintenance and extremely low failure rate.
Technical Specifications
(Custom configurations available upon request.)
| Parameter | Standard range | unit |
| Lifting capacity | 0.2 | Tons |
| Maximum Lifting Height | 3 | Meters |
| Min Lifting Speed | 4-6 | M/MIN |
| Max Lifting speed | 8-12 | M/MIN |
| Rated Working Air Pressure | 0.5-0.7MPa | MPa |
| Power Supply | AIR(filtration accuracy ≥40μm, oil-free and water-free) |
